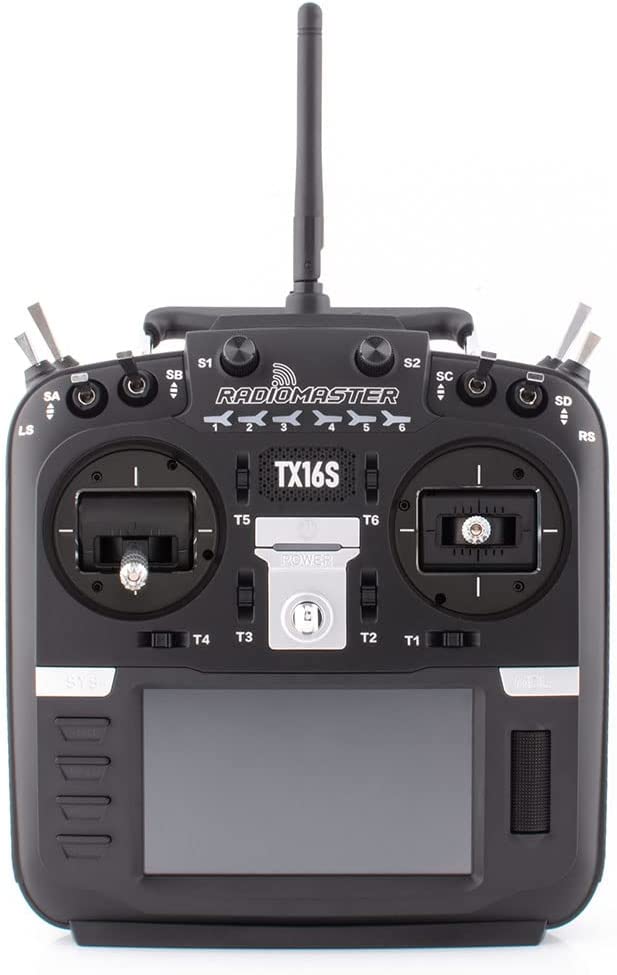

RadioMaster TX16S MKII V4.0 2.4G Hall Gimbals Transmitter ELRS Version Support EdgeTX and OpenTX, Mode 2
$199.90 USD
New charge circuitry with integrated reverse-polarity protection.
Optimized charge IC now allows up to 2.2A internal USB-C charge current.

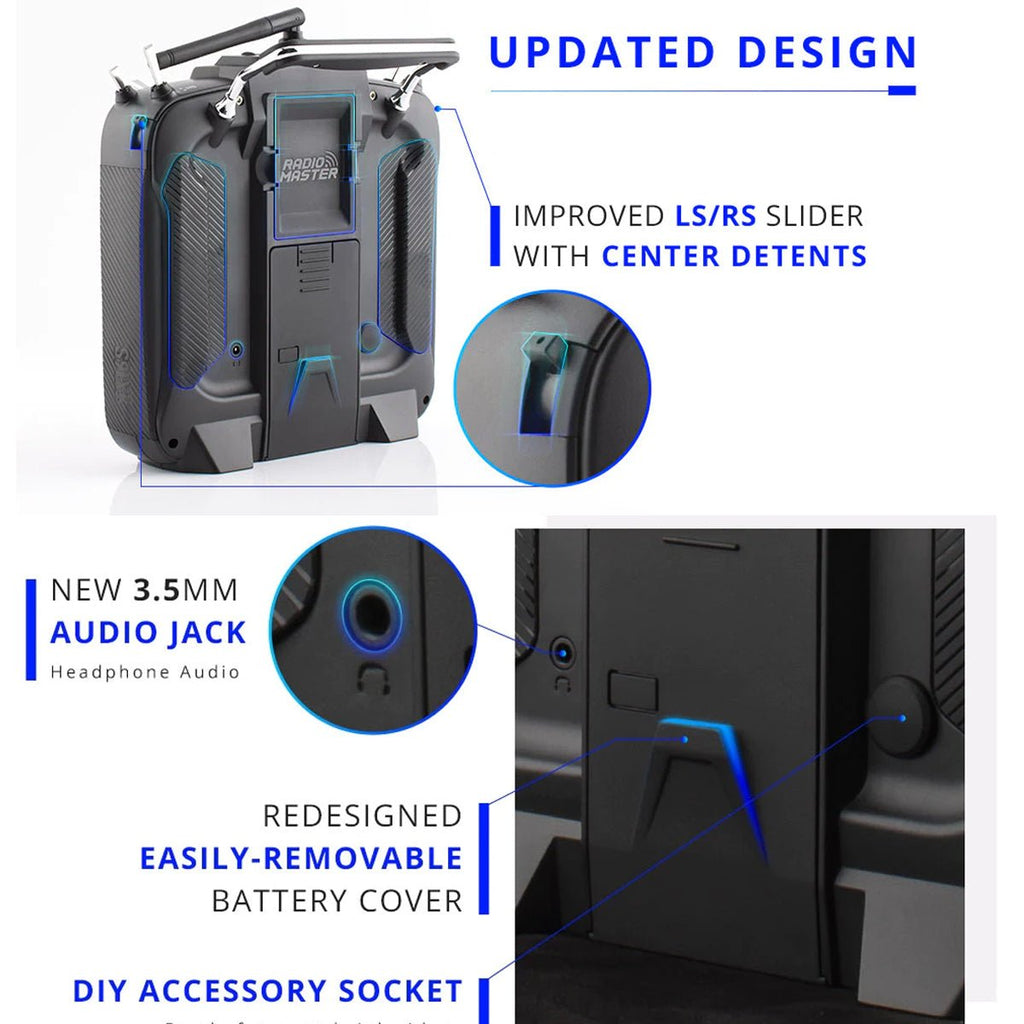

Rear-mounted audio jack provided headphone output.
Optional high/low rear grips are included for improved ergonomics.
Improved S1/S2 knobs with clear centre-detents, improved LS/RS Sliders with smoother feel and better centre-detents.
Redesigned battery cover for improved battery access.
Retooled body shell with improved fit and finish.

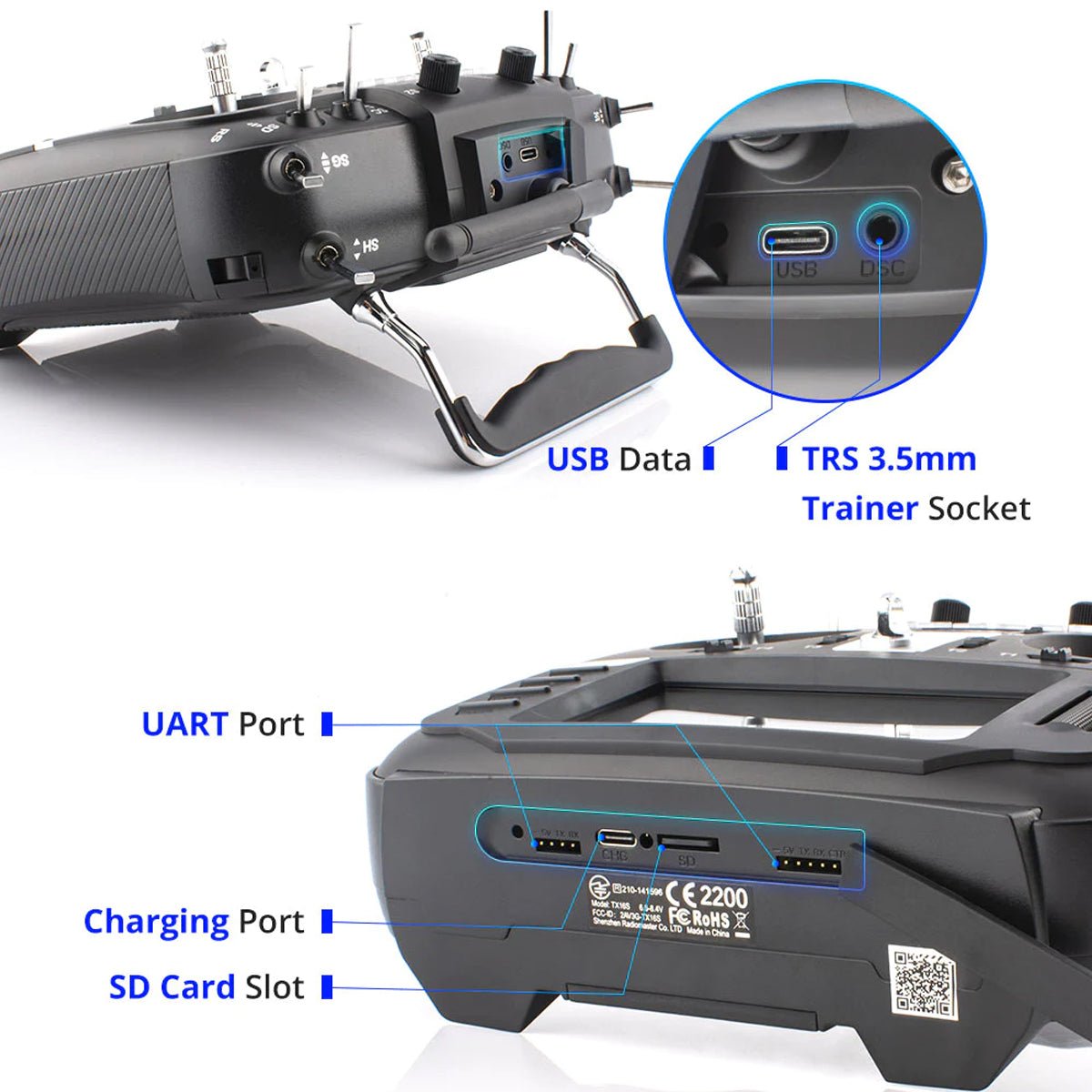

Trainer socket changed to standard TRS 3.5mm socket.
Rear DIY Socket added for personalized mods.

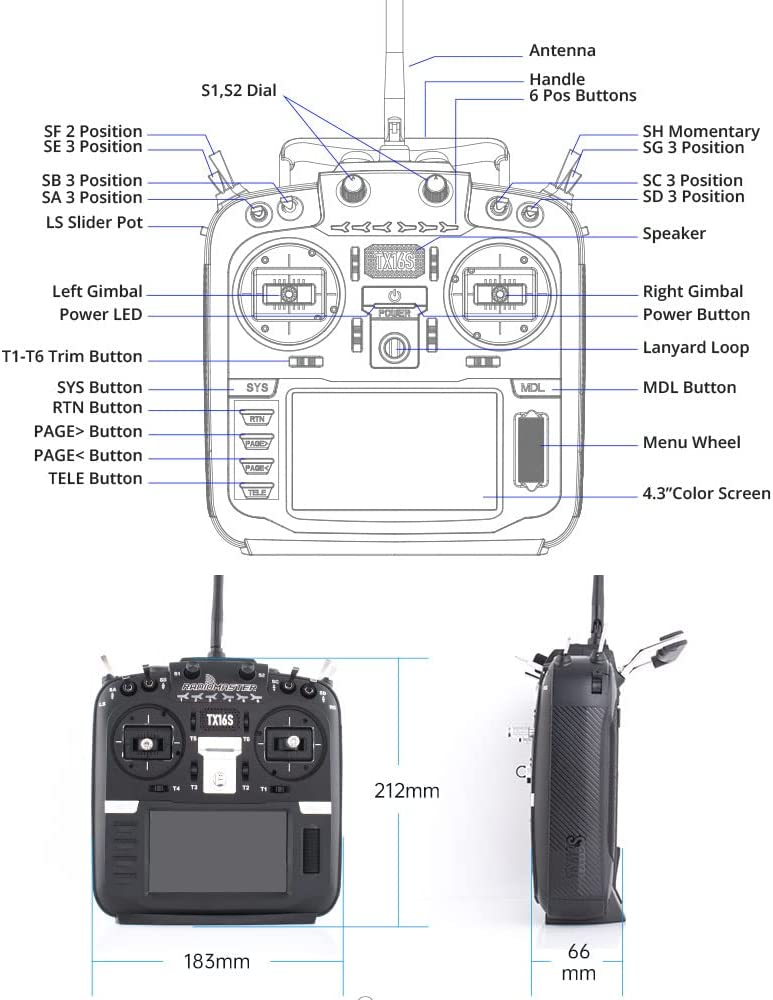

Size: 287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module: Internal ELRS (SX1280)
Transmitting power: Internal ELRS : Max 250mw (transmitting power is adjustable)
SD card: 256MB by default, 8GB maximum
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)

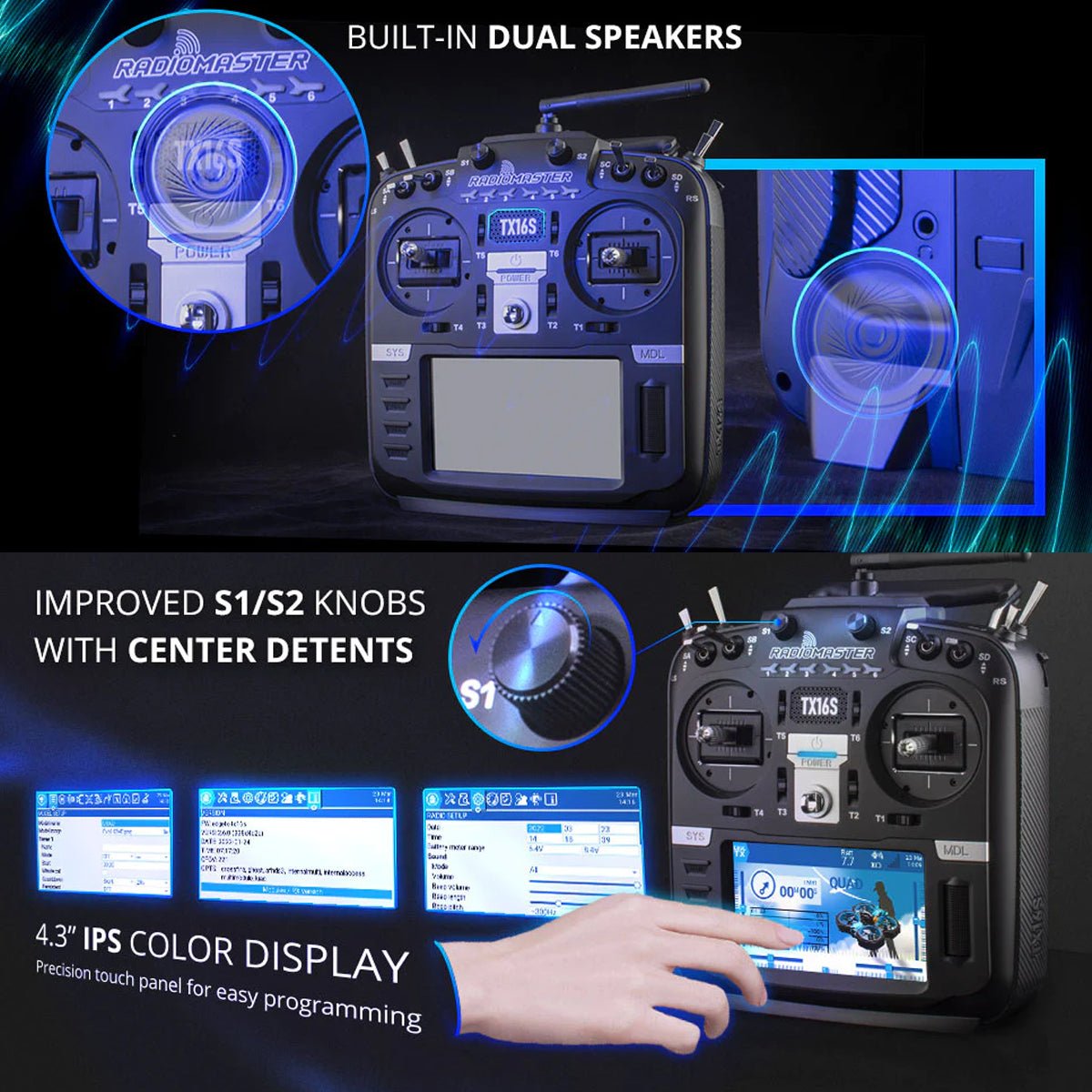

Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
Gimbal: V4.0 Hall sensor with Aluminium fascia;
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
Support EdgeTX and OpenTX
EdgeTX is installed by default (Touch screen enabled).

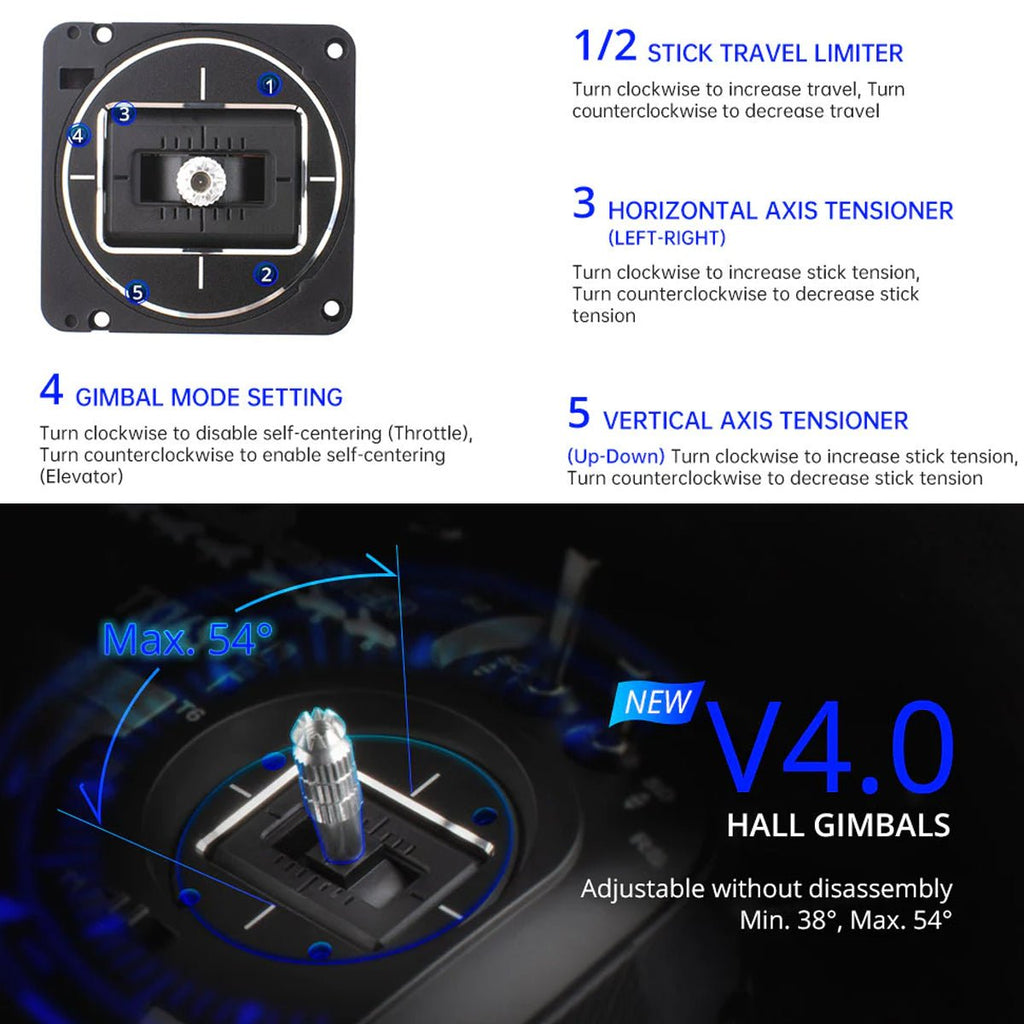

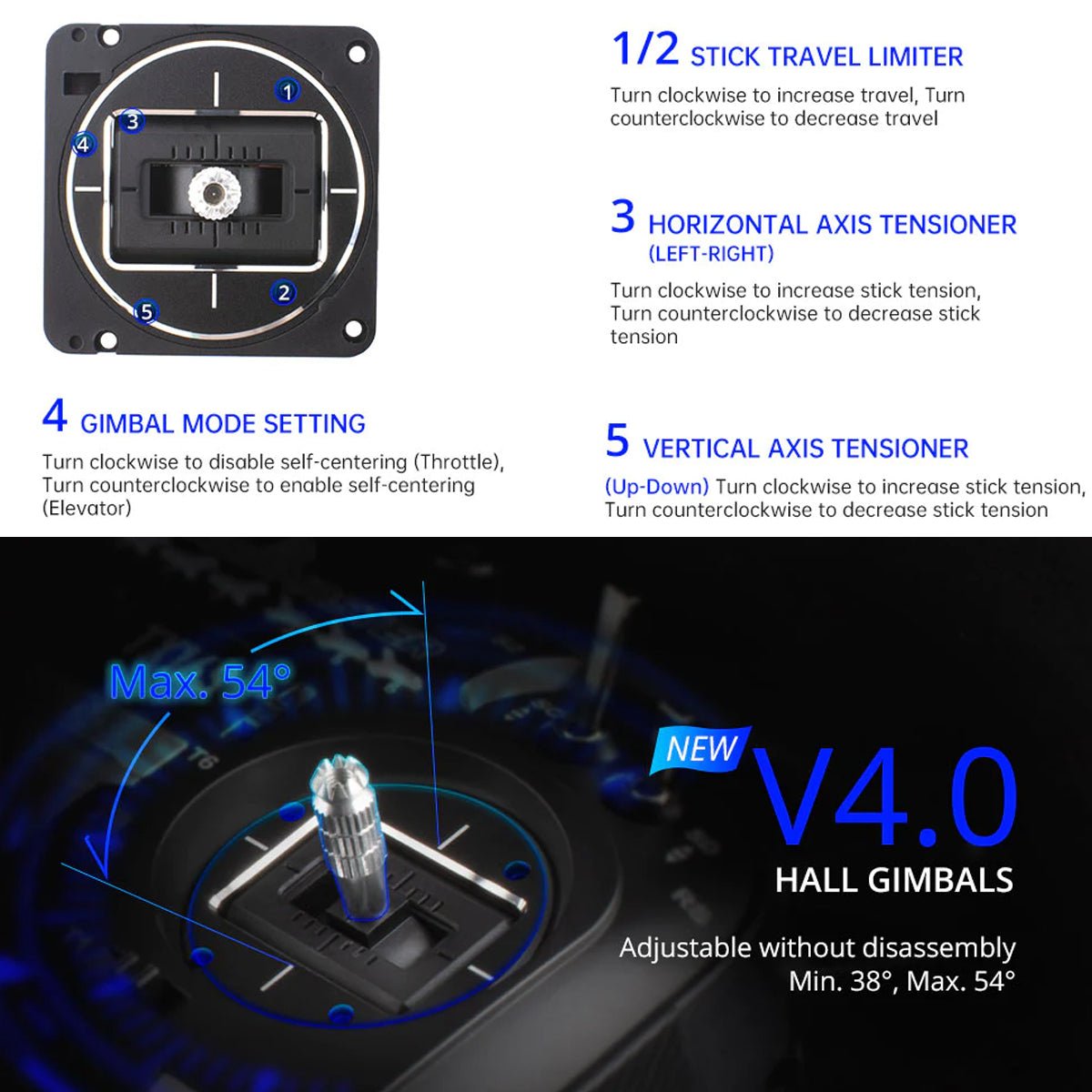

V4.0 HALL GIMBALS
Standard version with V4.0 Hall Gimbals, same chipset as the AG01 Gimbals, optimized hall sensor circuitry, improves center point positioning and temperature stability. Stick travel, self-centering and stick tension are now externally adjustable.
Package Includes
1 * TX16S Mark II Radio Controller
1 * 18650 Tray
1 * USB-C Cable
1 * Screen Protector
1 pair of flat grips
1 pair of raised grips (installed on radio by default)
1 * TX16S Key Chain
