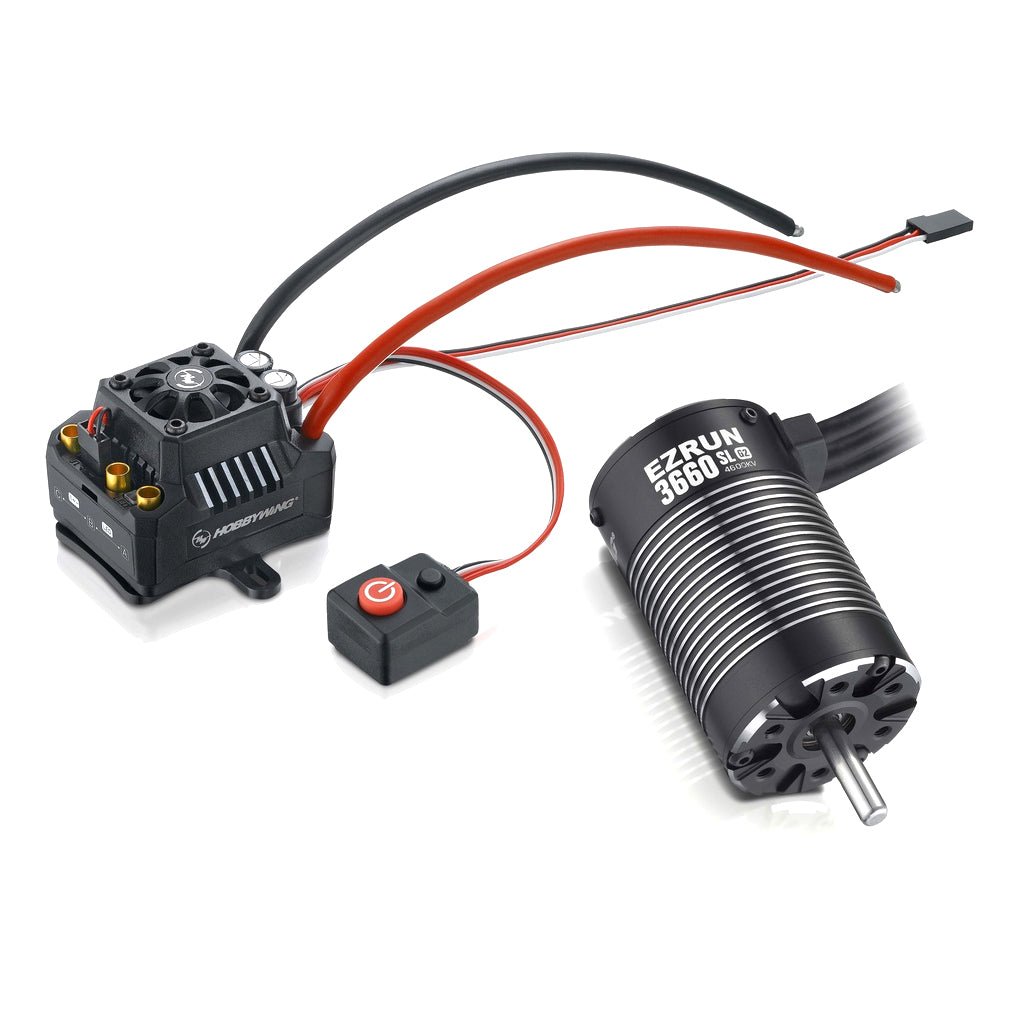

Hobbywing Max10 SCT ESC, w/ 3660SL G2 Sensorless Motor - Combo (3200KV); XT90 and Traxxas Plug Option; (38010200)
Max10 SCT ESC Specifications:
| Item Number: | 30102601 |
| Application: | 1/10th Short-course Truck / Stadium Truck / Monster Truck（4WD） |
|
Continuous Current: |
120A |
|
Peak Current: |
830A |
|
Motor Type: |
Sensorless Brushless Motor |
| LiPo / NiMH Power: |
9-12S NiMH, 2-4S LiPo |
|
BEC Output: |
6V / 7.4V Switchable, Continuous Current of 3A (Switch-mode BEC) |
| Cooling Fan: | Powered by the stable BEC voltage of 5V / 7.4V |
| Connectors: |
Input End: None; Output End: Female 4.0mm Gold Connectors (pre-soldered onto the PCB of the speed controller) |
| Size (L x W x H): | 49.0 x 39.5 x 34.7mm |
| Weight: | 105g |
| Programming Port: | FAN/PRG Port |
Highlight Features:
High Reliability & Durability
Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
Great Flexibility & Versatility
With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
Advanced and Secure Electronic Switch
The MAX10 SCT features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
Applicable to All Weather Conditions
The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
Innovative Filter Capacitor Thermal Protection
The filter capacitor thermal protection first implemented in the MAX10 SCT will effectively protect capacitors from exploding and causing irreversible damage to the ESC due to overload.
Wide Applicability
This MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc.
Item number: 38010200
3660SL G2 3200KV Brushless Motor Features:
- Innovative 4-pole-8-magnet "staggered pole" rotor
- Built-in temperature sensor and sensor port
- O-ring seal fitted between the front end bell and motor case
- Special design implemented by the motor case
- Special technology for temperature control
- CNC machined aluminum housing
- Rebuild-able design (partially rebuild-able) for routine maintenance
- Excellent match between EZRUN 3660 G2 with EZRUN MAX10 SCT
Package include:
1 x Max10 SCT ESC
1 x 3660 SL G2 Motor
1 x set of accessories
