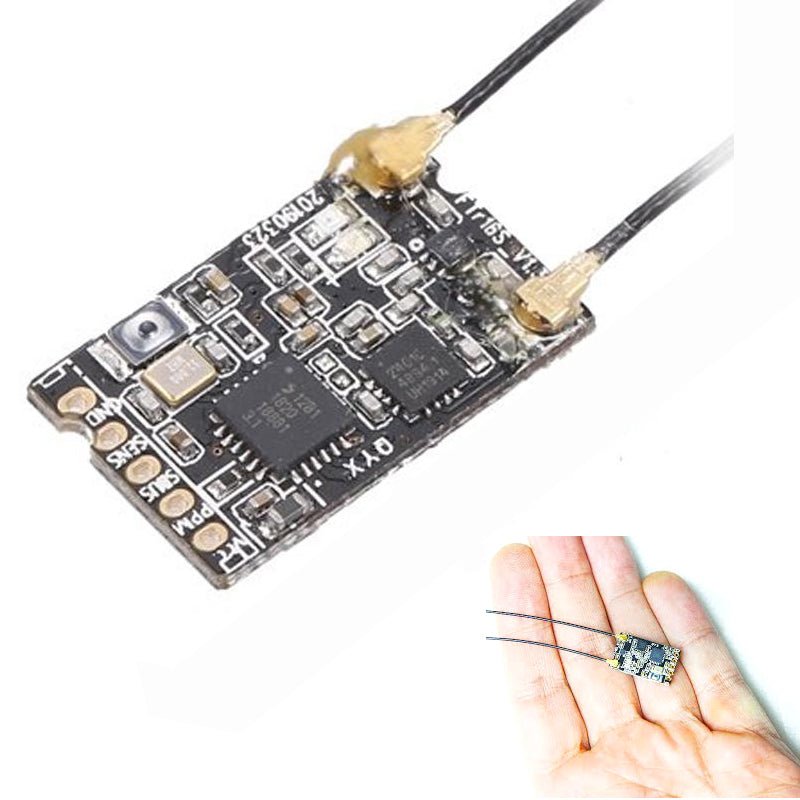

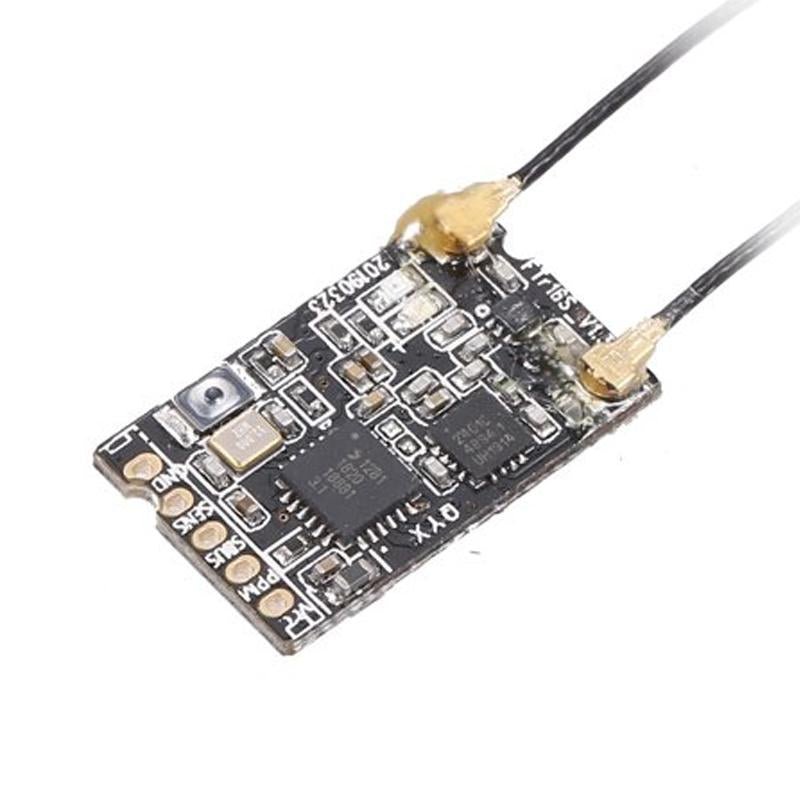

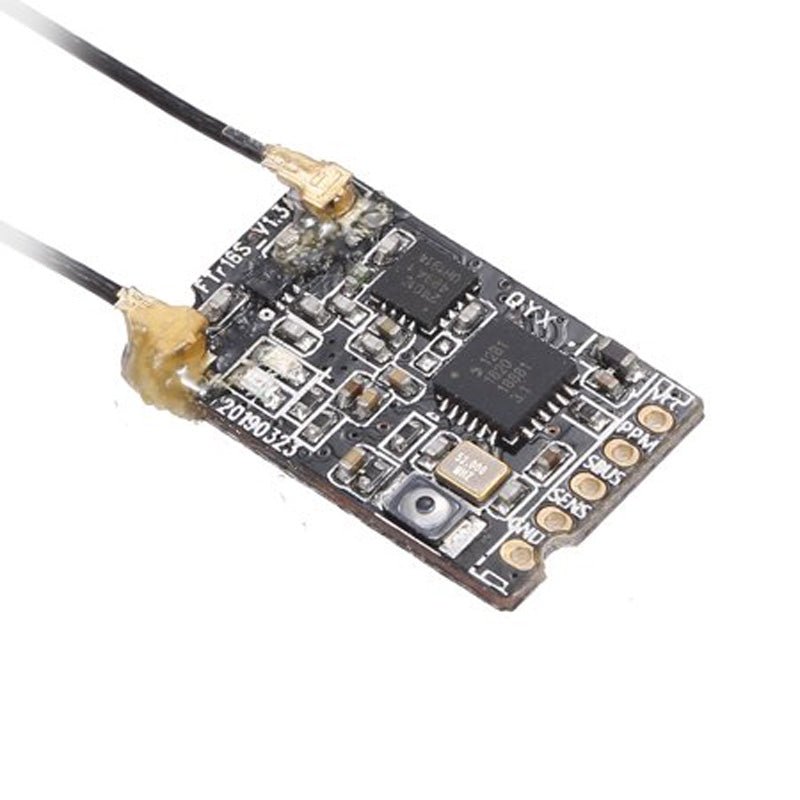

Flysky FTr16S AFHDS3 2.4G Ibus/Sbus/PPM RSSI Dual Antenna Micro Receiver for PL18 Radio Transmitter FRM302 RF Module FPV Racing Drone

Flysky FTr16S AFHDS3 2.4G Ibus/Sbus/PPM RSSI Dual Antenna Micro Receiver for PL18 Radio Transmitter FRM302 RF Module FPV Racing Drone

Description:
Brand Name: FlySky
Item Name: FTr16S Receiver
Channels: 16CH

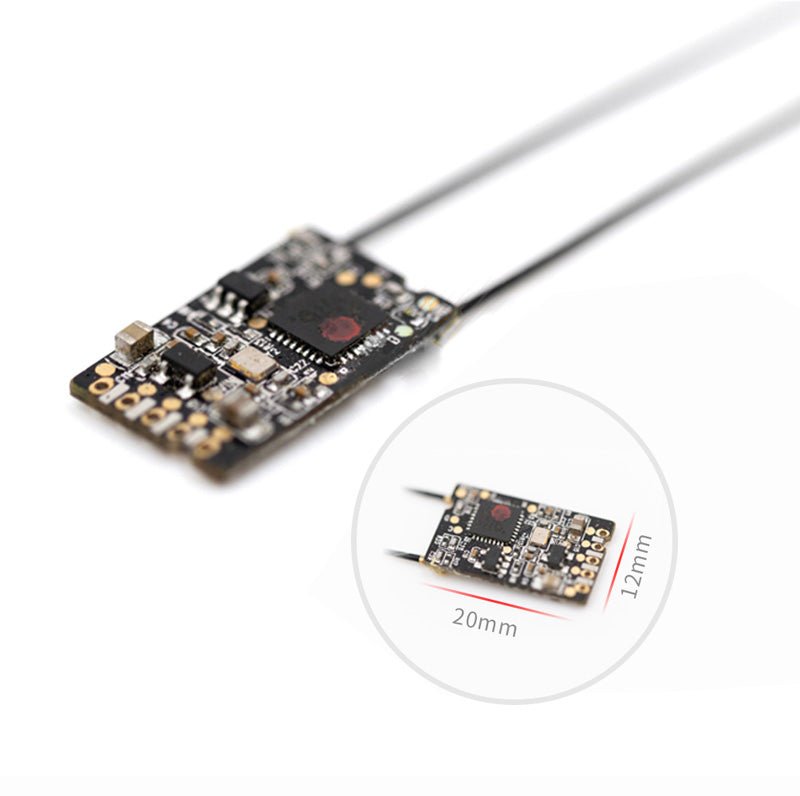

Size: 20x12x3.1mm
Weight: 2g
Wireless frequency: 2.4G
Wireless Protocol: AFHDS 3
Remote control distance: 3500m (air)
Range without interference 1m from the ground more than 1000m
Channel Data: 1500us; Range: 900-2100us
PWM channel: NO
Antenna type : Dual antenna (92.5mm x 2)
Power: 3.5-8.4V
Display: LED Indicator
RSSI: Support
Data interface: i.bus/s.bus/PPM
Temperature range: -10 ° C - + 60 ° C
Humidity range: 20%-95%
Online update: support

Binding:
-First put the transmitter into bind mode(see the transmitter's user manual for instructions on how to activate bind mode
-Press receiver's bind key and connect the receiver to power at the same time the receiver 's green led will start to flash quickly indicating that it has entered bind mode
-When the receiver's green LED stops flashing the transmitter and receiver have successfully bound
-When the receiver's red LED flash slowy indicating losing signal

Package Included:
1 x FTr16S Receiver
