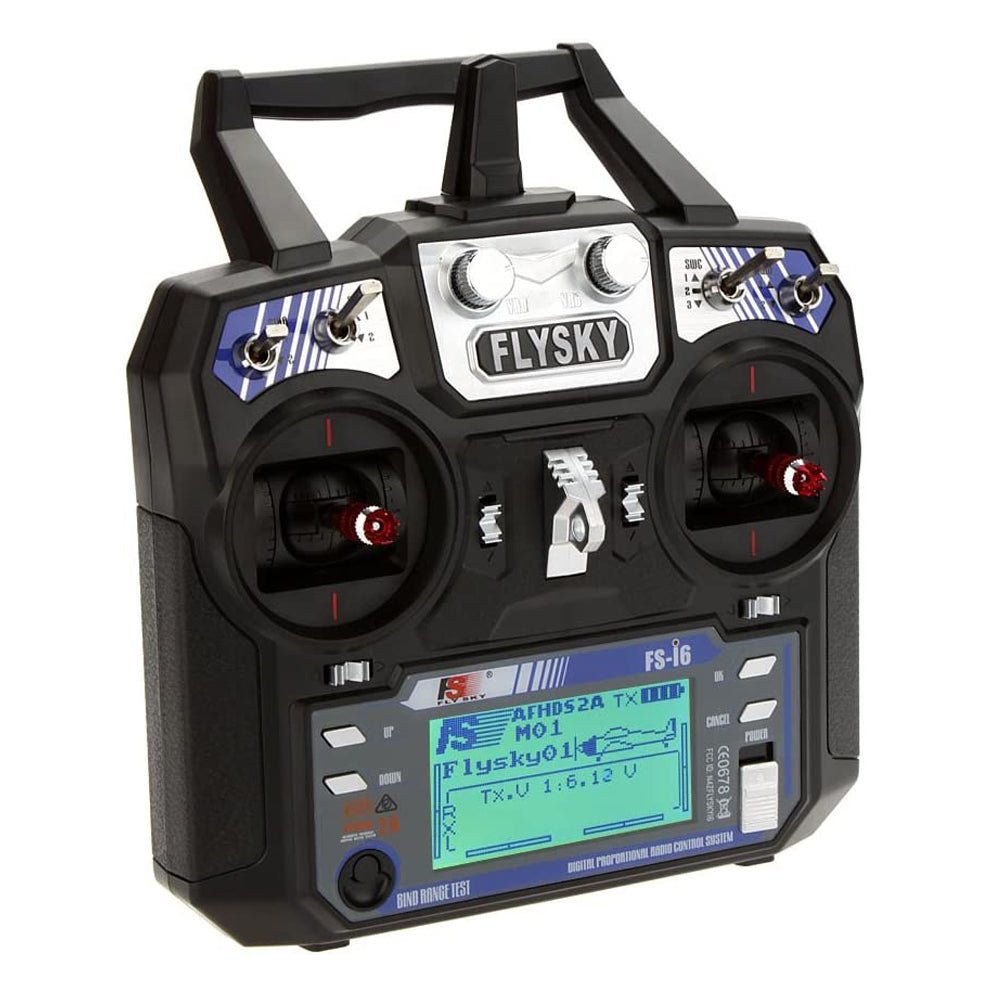

Flysky Fs-i6 Rc Transmitter & FS-iA6 Receiver for Rc Airplane, Helicopter, Glider, FPV Quadcopter Drone, 6-Channel 2.4Ghz
The FS-i6 is an entry-level transmitter built for fixed-wing / glider / helicopter and fpv drone. Featuring the AFHDS 2A protocol, upgradeability (up to 10 channels)
The ultra slim case design ergonomically fits your hands leading to less hand fatigue especially during long flights. Digital trims, backlit LCD screen, and simple programming give the FS-i6 a modern feel with all the features you want. With a low profile antenna, the FS-i6 is easy to store and no worries about breaking it. Adjustable length sticks, and a loop for attaching a neck strap round out the list of comfort features this radio offers. For changing flight modes or multiple flap position options, the FS-i6 has a 3-position switch, as well as two adjustable knobs.
Expand the capabilities of your models or just know what is going on with the optional telemetry receivers and variety of sensors.
FS-i6 Transmitter Specifications:
|
Model Type: |
Glider/Heli/Airplane/Quadcopter Drone |
|
No. of Channels: |
6 Channels |
|
RF Range: |
2.40-2.48GHz |
|
Bandwidth: |
500KHz |
|
Band: |
142 |
|
RF Power: |
Less Than 20dBm |
|
2.4ghz System: |
AFHDS 2A / AFHDS |
|
Code Type: |
GFSK |
|
Sensitivity: |
1024 |
|
Low Voltage Warning: |
Less than 4.2V |
|
DSC Port: |
PS2 |
|
Output: |
PPM |
|
Charger Port: |
No |
|
ANT length: |
26mm x 2 (Dual antenna) |
|
Range: |
500 ～ 1500m (in the air) |
|
Channel resolution: |
4096 |
|
Display mode: |
Transflective STN positive type, 128*64 dot matrix VA73*39mm, white backlight. |
|
Model Memories: |
20 |
|
On-line update: |
Yes |
|
Telemetry: |
Yes, with the use of FS-IA10 Receiver (NOT INCLUDED) |
| Size: | 174 x 89 x 190 mm(L x W x H) |
| Weight: | 392 gm |
| Power: | 6V (1.5AA x 4 Not Included) |
FS-iA6 Receiver Specifications
|
No. of Channel: |
6 |
|
Frequency Range: |
2.4055--2.475GHZ |
|
Band Width Number: |
140 |
|
Transmitting Power: |
≤ 20dBm |
|
RF Receiver Sensitivity: |
-105dbm |
|
2.4G Mode: |
The second generation of an enhanced version of the automatic FM digital system |
|
Encoding: |
GFSK |
|
Antenna Length: |
26mm x 2 (Dual antenna) |
|
Input Power: |
4.0-6.5V DC |
|
iBus Interface: |
Yes |
|
Data Acquisition Interface: |
Yes |
| Dimension: | 47 x 26.2 x 15mm |
| Weight: 14.9g | |
|
Model Type: |
Airplane / Glider / Helicopter / Quadcopter / Fpv Drone |
Click and Download Instruction Manual Here
Features:
Entry level 6 channel 2.4GHz radio with telemetry capability
Dual Rate/Trims/Gear/Flap/Gyro Gain Adjust/Flight Mode/Throttle Hold/Hover Pitch Switches
Easy to use Programming & Navigation Buttons
Supports Heli/Standard Wing/Elevon/V-Tail
20 Model Memory
Trainer and charging ports
Backlit LCD Screen displays real-time transmitter and receiver voltage
4 Stick Mode Selectable
Package Includes
1 x Flysky FS-i6 RC Transmitter.
1 x Flysky FS-iA6 Receiver
