BETAFPV F4 2-4S AIO Brushless Flight Controller 12A V2 STM32F411CEU6

$39.99 USD

We have run out of stock for this item.

BETAFPV F4 2-4S AIO Brushless Flight Controller 12A V2 STM32F411CEU6 (100MHZ )

F4 AIO FC 12A V2 is upgraded in these 2 spark points.

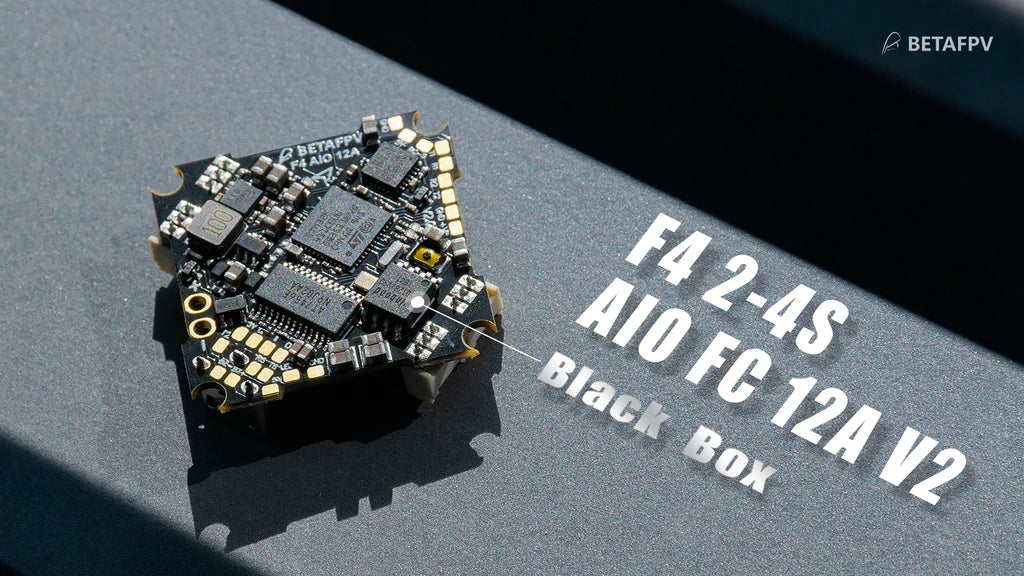

Add 8M Flash chip for Betaflight Black Box. More details please check it here.
3 full UARTs (UART1, UART2 and UART6) are available. Pilots could use one UART for DJI digital FPV unit or Caddx Vista digital FPV unit and the other UART for external receiver like TBS Crossfire.
Also this board is light only 5.07g and suitable for brushless whoop like 2S Pro 2 Series/ X Series. Integrated with a Betaflight MATEKF411 processor FC, Betaflight OSD and 2-4S 12A ESC which can support 4S battery for fast flying experience.

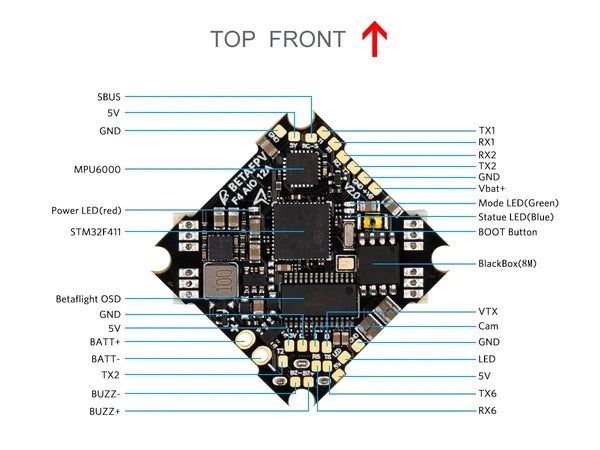

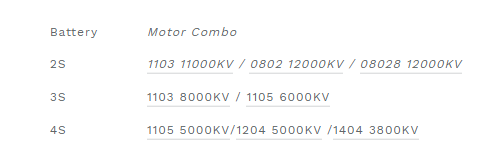

Recommended Battery and Motor combo

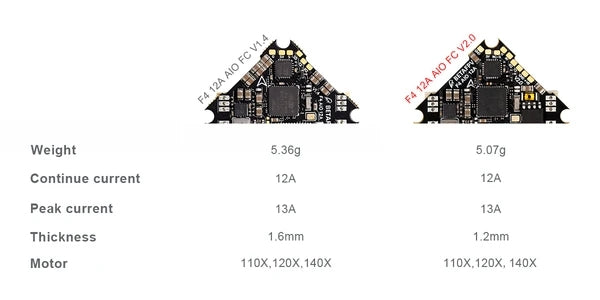

Comparison of Toothpick 12A AIO FC and F4 12A AIO FC

CPU: STM32F411CEU6 (100MHZ )
Six-Axis: MPU6000 (SPI connection)
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: BETAFPVF411 (BEFH)
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver. Add Frsky R9M Receiver and BETAFPV Micro DSMX Receiver (Don't support DSMX RX with 3.3V solder pad ) since V1.2.
Support programmable LED like WS2812 etc
Built-in current sensor
Weight: 5.07g

Support BLheli/BLHELI_S suite Pass-through ready
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-4S Lipo
Continue current: 12A
Peak current: 13A
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G
Motor Connectors: 1.25mm header pins connector
Factory firmware: G-H-30-16.7
Could the ESC on this AIO board support really 4S battery?

Yes. But please pay more attention to the motors. Here are two situations that the motor will burn itself and then the ESC frequently.

Situation 1: The motor's KV value is too high and could not stand the 4S power. For example, the BETAFPV 1105 6000KV motors could not stand the 4S power in aggressive flying. So we are working on a lower KV 1105 motor that could use with 4S battery. It will be released soon.

Situation 2: A poor quality motor will result in the fire accident in 4S power.

For the moment, no 0x0x/1102/1103 motors could stand 4S power for the moment in the market. Please make sure your motors could support the 4S battery before any try.

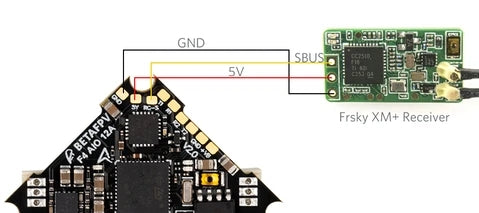

Here is the connection diagram with Frsky XM+ receiver.

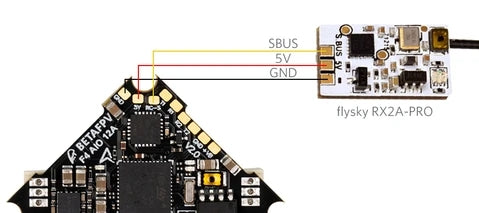

Here is the connection diagram with FS-RX2A receiver.

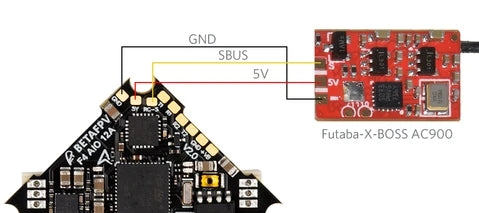

Here is the connection diagram with Futabe-X-BOSS AC900 receiver.

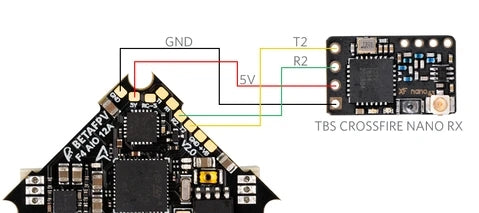

Here is the connection diagram with TBS Crossfire receiver.

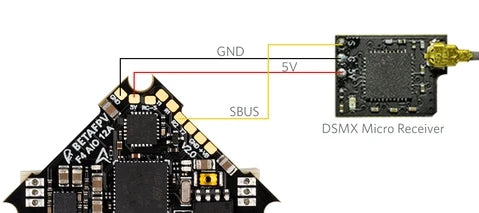

Here is the connection diagram with DSMX FullSpeed receiver.

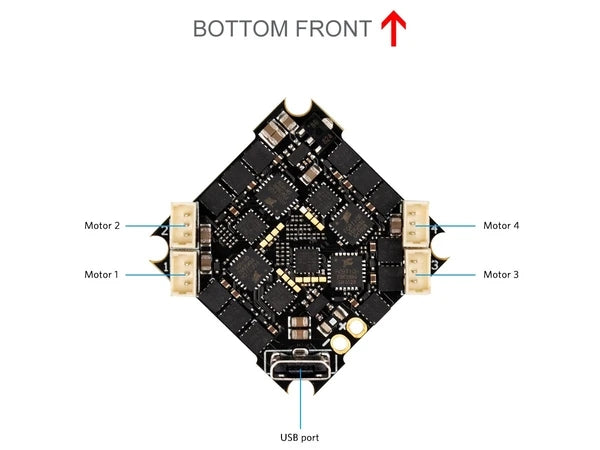

Status LED

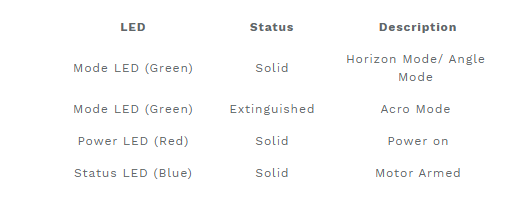

There are 3 LEDs on the bottom of the board to indicate the status, including Receiver LED ( Green), FC Status LED ( Blue ) and FC Power LED ( Red ).

Built-in Current Meter

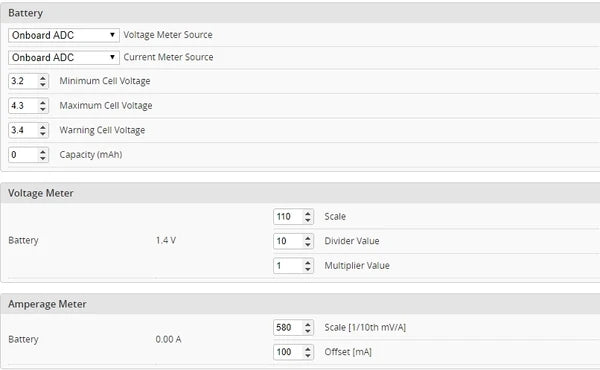

This is our first whoop FC board that have current sensor built-in. So no need to use the virtual current meter and you could get a more accurate current value. In order to use this current sensor hardware, some configurations in Betaflight GUI are needed. In the "Power & Battery" tab:

Then when flying, you could find the real current value from the OSD information. Of course, the current sensor is configured well in the factory and you do not need to change it as usual.

Know more about current sensor and calibration.

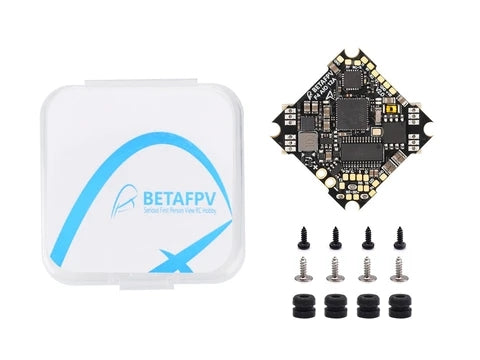

1 x F4 2-4S brushless flight controller with XT30 Plug
4 x M1.2x4mm screws
4 x M1.4x5mm screws
4 x Anti-vibration rubber dampers
