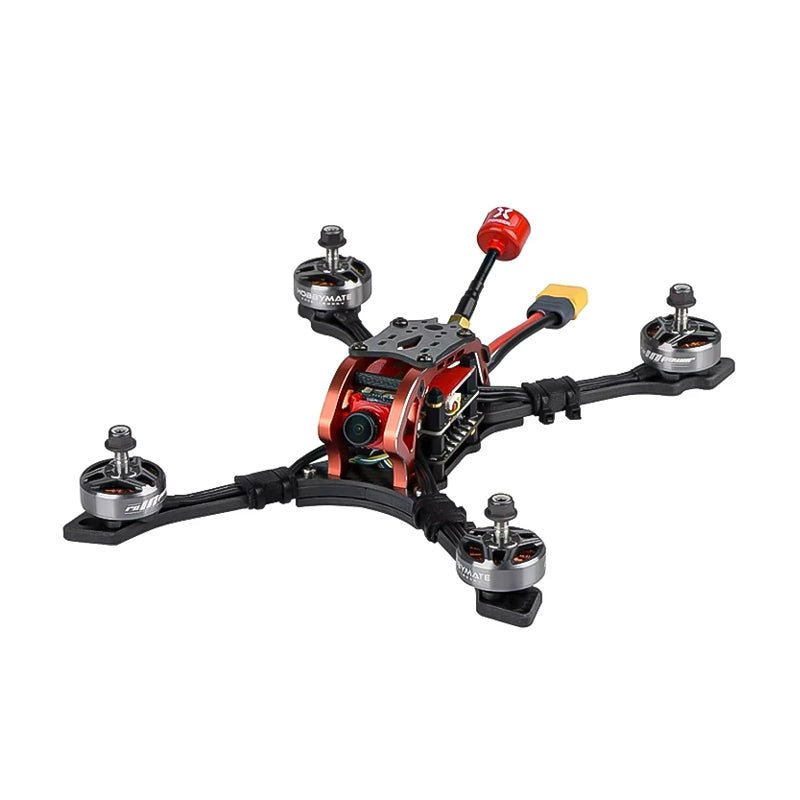

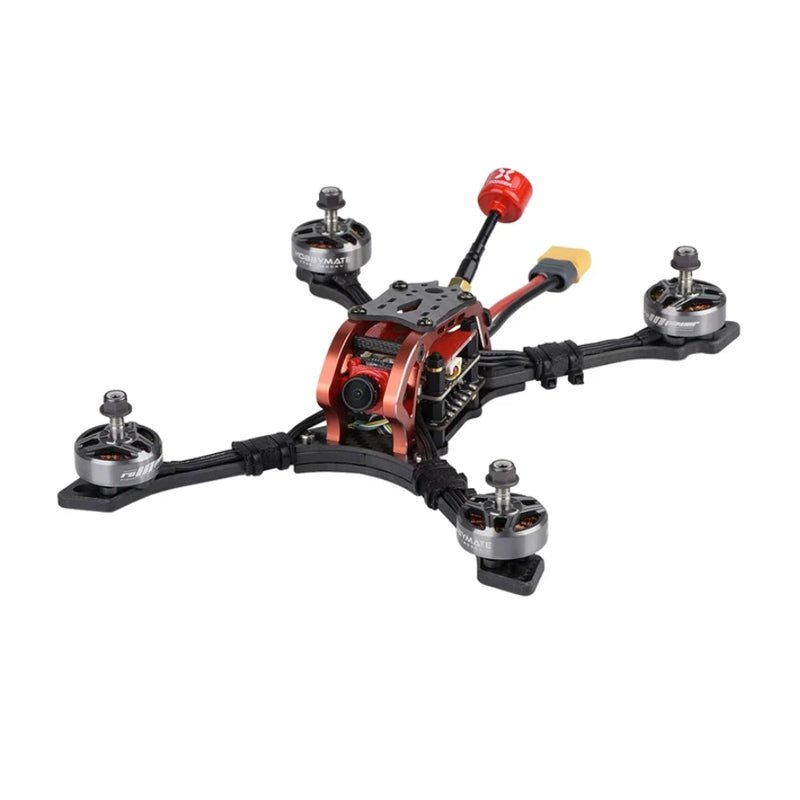

HOBBYMATE Meteor 5" 5 inch FPV Racing Drone Stretch X Frame Kits / Pnp, Support 4-6S Lipo Power

$239.90 USD

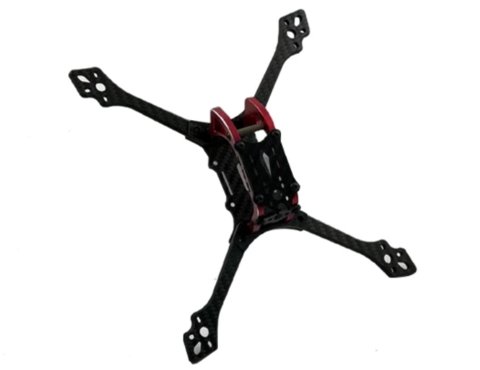

-220mm 5" Platform
-Full 3k carbon fiber twill
-5mm arms, 2mm plates
-6063 Aluminum Alloy Cage (Meteor only)
-Camera protection
-Ultra Small Profile
-Lightweight designed and durability with 5mm arms: 79g (Comet), 85g (Meteor)
-19*19mm mounting size camera only

-Airbot OMNIBUS F4 V6 flight controller
-Airbot Furling32 F3 4in1 BLHeli_32 ESC 45A
-Hobbymate Motors: 2306 1800 or 2750kv (Meteor)
-25-600mw switchable 48ch VTX support Smart Audio
-Foxeer Arrow Pro Micro FPV camera
-Foxeer Lollipop 2 2.5DBi 5.8G Super Mini Antenna

Hobbymate 2306 FPV Racing Competition Motor 2750KV/1800KV (Meteor)

-Newest version
-Omnibus Fireworks firmware (OMNIBUSF4FW target)
- Betaflight OSD
-5V1A BEC on board(3-6s) and 1x 8V BEC for Camera/VTX
-MPU6000 at SPI bus, Ext, SPI for damped gyro
-SBUS/PPM input (Pinheaders)
-6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
-Barometer BMP280
-36x36mm, mount holes 30.5x30.5mm


-Input Voltage: 7-24V DC (6s compatible)
-Frequency: 5.8G
-Channel: 48 (including RaceBand)
-Channel Select button
Video Format: NTSC / PAL
Power Transmission: 0mW / 25mW / 200mW / 400mW /600mW Switchable
Size (mm): 36 x 36 x 5mm
Weight: 6g (Does not contain antenna)
Connector Type: MMCX Connector
Connector Type of Cable: SMA
Smart Audio Protocol: IRC Tramp

Foxeer Arrow Micro Pro 600TVL FPV Camera 4:3 with OSD

-Sony SUPER HAD II CCD+Nextchip 2040 DSP
-OSD programming board
-Wide dynamic range
-Input Power: 5-40V
-Size: 19*18.5mm
-Weight: 5.5g

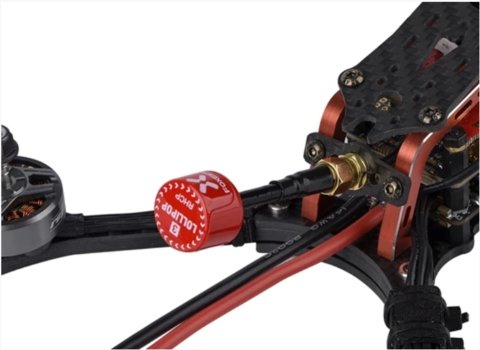

Foxeer Lollipop 2 Antenna


Airbot F4 flight controller manual pinout:
Smart Audio (UART2)
ESC Telemetry (UART4)
FrSky Smart Port (soft Serial TX1, A09)
Firmware: OMNIBUSF4FW target, suggest update to the latest version
Must set gyro_to_use = second using CLI

Download instruction manual for both Comet and Meteor fpv drone

HOBBYMATE Full range receiver D16 mode compatible with Frsky Radio Transmitter, Jumper T16 Transmitter
