Input voltage: DC 7V-27V
Input current: 16.4V (4S) 200MW = 240 MA + 10MA
Output voltage: DC 5V 1A
Power switching: 3 modes, 25MW, 100MW, 200MW
Signal channel: 48
Frequency switch: manual button / OSD (simultaneous support)
Antenna interface: IPEX
Outline size: 27MM*27MM*4MM hole distance: 20*20MM, M2.5
+5V GND VIDEO
Camera power supply (5V)
BAT- BAT+
Input power supply (7-27V)
RXD
Flight control serial transmission
- Stable output power and far transmission distance.
- Fast 3 switch power switch, independent two red indicator lights.
- Support OSD remote parameter adjustment, PIT mode adjustment.
- Use onboard power filter to isolate the interference caused by highpower motor and keep the flight picture clear.
- Small size, 27mm*27mm, installation hole 20mm*20mm compatible to CC3D NAZE32 F3 F4 F7 and other mainstream flight control.
Package includes:

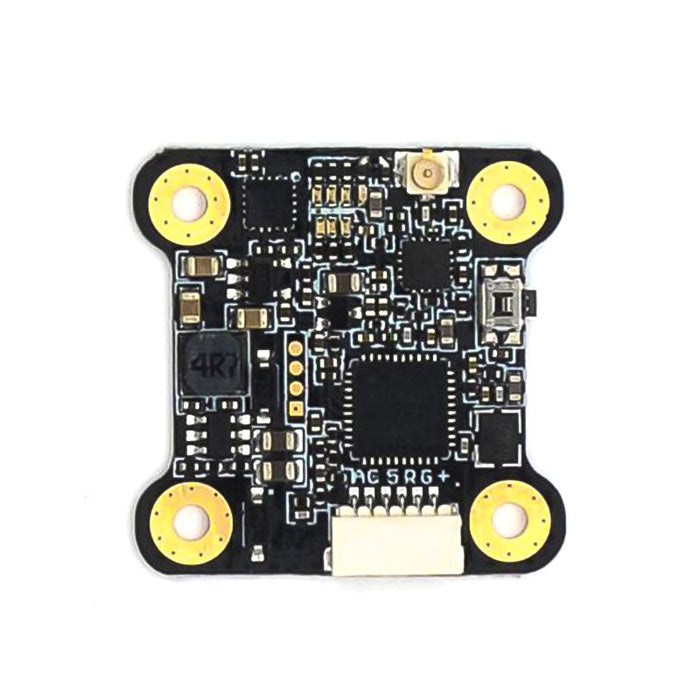

1 * FPV Transmitter
1 * IPEX Antenna
